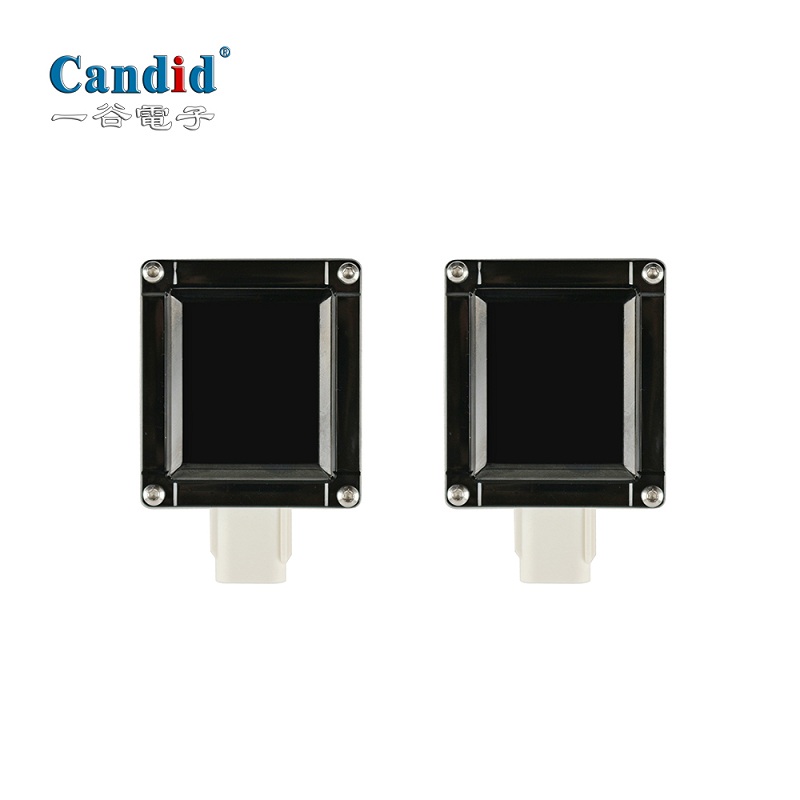

Микроволновые радиолокационные системы обнаружения слепых зон BSD-24G
Features:
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
Функции
24G Hz, high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Спецификации
Рабочая частота | 24 ГГц |
Боковая дальность обнаружения | 3 метра |
Дальность обнаружения сзади | 15 метров |
Горизонтальный угол | 120º |
Обновление целевого показателя | 50 Гц |
Точность дальности обнаружения | 0.36м |
Диапазон погрешности угла обнаружения | 1º |
Диапазон ошибок определения относительной скорости | ±0.25 м/с |
Относительная скорость сигнализации | Когда относительная скорость целевого транспортного средства по отношению к транспортному средству составляет менее 140 км/ч, система работает. |
Минимальная скорость обнаруженной цели | Относительная скорость цели более 2,5 км/ч. |
Время ответа | 50 мс |
Антенный туннель | 1Тх 1Р |
Выходная мощность антенны | 12 дБм |
Класс защиты IP | IP67 |
Рабочее напряжение | 9–16 В (типовое значение 12 В) |
Энергопотребление | ≤500 мА @12VDC |
Рабочая температура | -40°С–+85°С |
Температура хранения | -40°C–+95°C |
Приложений
